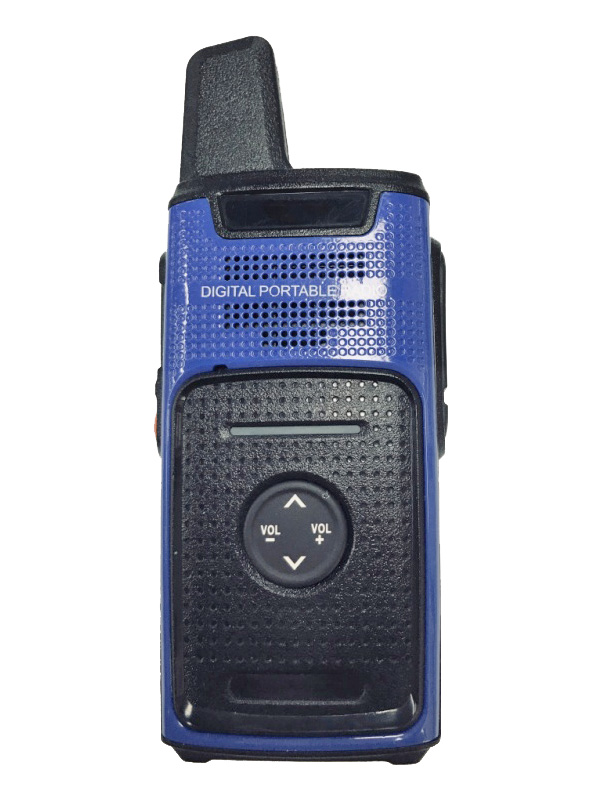

Small PMR Radio ET-U67
Send Inquiry Message to EVOTE
We Are Interested in Product of ET-U67 , Please Contact Me Use My Email
You Email Address
Send Inquiry
Message Sent Successfully
Technical Specification
General
Frequency Ranges
400-470 MHz , Programmable For PMR Channels
Channel Spacing
Wide : 25KHz , Narrow : 12.5KHz
Standby Current
60 mA
Memory Channels
16
Voltage
3.7 VDC
Working Temperature
-20℃ ~ +80℃
Antenna Impedance
50 Ω
Battery Capacity
2500mAH Li-ion Batterypack
Frequency Stability
±2.5 PPM
Transmitter
Carrier Frequency Ratio
±2.5 PPM
Carrier RF Power
≤10 W
Modulation
Wide ≤ 5KHz , Narrow ≤ 2.5KHz
Audio Distortion
≤5％
Transmitting Current
≤1500 mA
Modulation Characteristic
﹢1 ~ ﹣3dB(0.3 ~ 3KHz)
Adjacent Power
≥70 dB
Spurious Emission
≤-36 dBm
Occupied Bandwidth
16 KHz
Receiver
Receiving Sensitivity
≤0.25 uV
Audio Output Power
>2 W
Audio Distortion
≤5％
Audio Response
﹢1 ~ ﹣3dB(0.3 ~ 3KHz)
Co-Channel Rejection
≥﹣8 dB
Adjacent Channel Selectivity
≥70 dB
Inter-Modulation Rejection
≥65 dB
Emission Response Rejection
≥70 dB
Block Characteristic
≥84 dB
